The workshop transfer cart is a heavy-duty material handling device specifically designed for workshops and warehouses. It is mainly used for moving and transferring heavy materials such as molds, steel, equipment, and transformers.
This product series is widely used for mold transportation in workshops, and its excellent flexibility makes it highly popular among customers.
The equipment is battery-powered, eliminating the limitations of cable length and allowing it to reach any workstation freely. Battery technology is now well-developed, providing a runtime of approximately 4 hours under continuous full-load operation. In most cases, we configure a suitable battery capacity based on the user's working frequency. With a single charge, the cart can typically support at least two days of normal use.
How to determine whether the equipment is suitable for workshop conditions?
This workshop transfer cart is suitable for 80–90% of factories due to its strong customization capabilities. Key parameters can be customized based on the weight and size of the materials, ensuring safe and stable transportation.
Applicable industries include manufacturing workshops, production lines, automated workshops, and warehouses; high-temperature environments in the smelting industry; sandblasting and painting rooms; standard-temperature workshops; steel storage and transportation routes; heavy material transportation in aerospace; molten metal handling; modern logistics workshops; chemical factories, and more.
Electrical components shall adopt Schneider or equivalent brands. Motors and reducers shall be products from well-known domestic manufacturers or equivalent brands. Customers may specify the brand of all accessories.
| Model | DWP | |||||||
| Rated load (T) | 5 | 10 | 20 | 30 | 50 | 60 | 150 | |
| Impacted rated load(T) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | |
| Structure of the frame | Steel plates welded, beam structure | |||||||
| Table Size (mm) | Customized | |||||||
| Height (mm) | 450 | 530 | 600 | 600 | 600 | 700 | 700 | |
| Motor Power (kW) | 3 | 4 | 5 | 9 | 12 | 15 | 40 | |
| Wheel Diameter(mm) | Φ300 | Φ350 | Φ400 | Φ400 | Φ600 | Φ700 | Φ900 | |
| Running speed(m/min) | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | |
| Break method | electromagnetic brake | |||||||
| Ground clearance | 50-100 | |||||||
| Balance adjustment | mechanical conditioning | |||||||
| Operating Mode | Wireless remote control/car handle | |||||||
| Battery Type | Lead-acid battery, maintenance-free battery, lithium battery | |||||||
| Safety protection | Infrared contact stop, fan-scanning radar | |||||||
| Surface requirement | Laying rubber, V-shaped frame, table lifting, rollover, work frame | |||||||
Saudi Case: Customized Mold Transfer Cart Project
This customer is a well-known company in Saudi Arabia. The order was for a customized 10-ton load capacity workshop transfer cart with dimensions of 2000 × 1500 × 600 mm. It uses a differential steering system and supports forward movement, reverse movement, 360-degree turning, and speed adjustment.
The main purpose of this purchase was to transport a 10-ton mold from Workshop A to Workshop B. The cart is equipped with a balance beam to ensure more stable and safer movement.
A 200Ah lead-acid battery enables the cart to operate for 4–6 hours under full load. For this customer, one full charge can support up to 5 days of use under their normal working conditions.
Mold Transfer Trolley– Key Attributes
Product Name: Mold Transfer Trolley / Die Handling Cart / Mold Transport Trolley
Application: Mold transportation, die handling, heavy tool movement in workshops and factories
Load Capacity:10tons (1-150 tons: customized based on mold weight)
Platform Size: Customized according to mold dimensions and workshop space
Platform Height: Low-profile design for easy loading and unloading
Power Supply: Battery powered
Control Method: Wireless remote control/Wired pendant control (backup option)

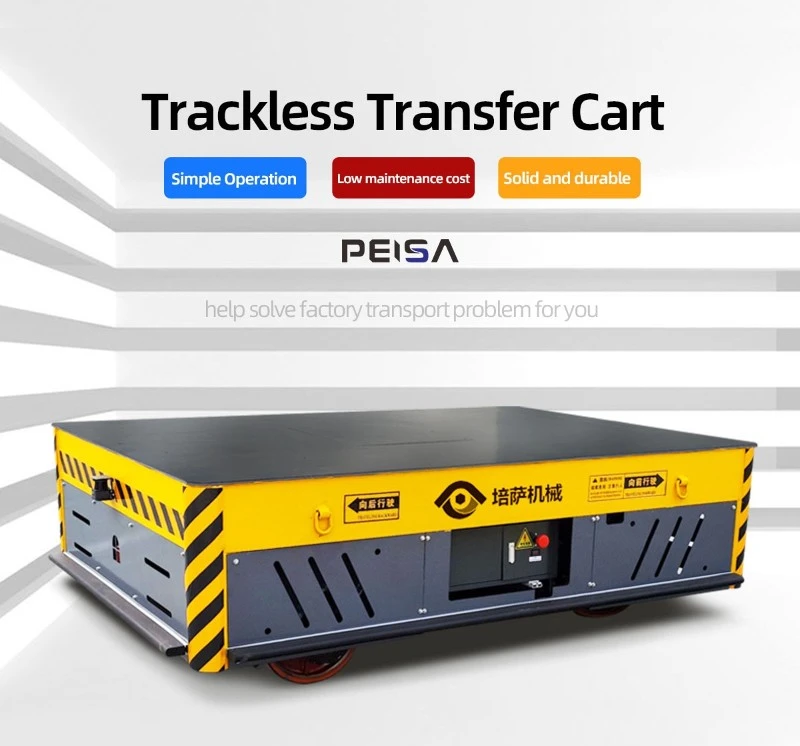

Travel Type: Trackless mold transfer cart
Steering System (Trackless Type): Differential steering
Driving System: Electric motor drive with gearbox
Speed Control: Variable frequency drive (VFD) for soft start and soft stop
Travel Speed: 0–20 m/min

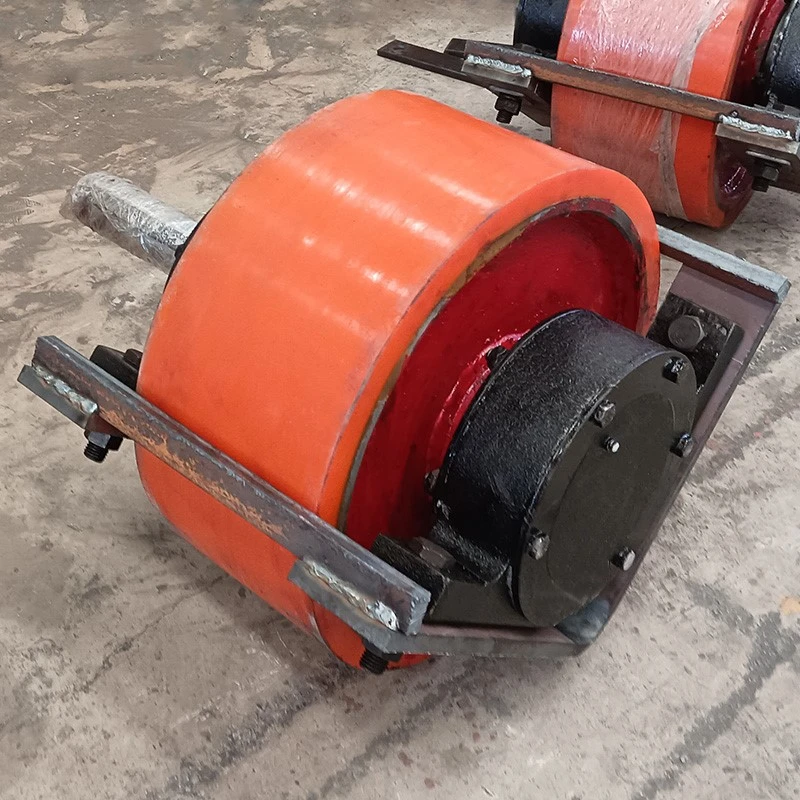

Wheel Type: Polyurethane wheels
Table Structure: Reinforced steel platform, anti-slip surface,
Safety Devices: Emergency stop button/Sound and light alarm/Anti-collision sensor (infrared / laser)/Overload protection/Automatic braking system
Warranty: Standard 12-month warranty with spare parts and technical support.
All the above are customizable options; Clients may propose any custom requirements.
Get A Transfer Cart Solution
Clarify the dimensions and load capacity, which should be determined based on the maximum weight and volume of your goods.
Specify the operation mode, with two options available: ground operation or rail operation.
Inspect the road conditions and check for any obstacles along the planned transportation route.
Confirm the daily transportation mileage required for your daily operations.
Determine the suitable power supply method for the transportation equipment.
Submit your specific requirements to our team.
Communicate with our team to discuss and finalize the implementation details of the solution.
Obtain the confirmed drawings for the finalized solution.
Service life of the workshop Transfer Cart--The cart has a service life of no less than 10 years.
Battery life -According to your specific needs, the battery we configure can support at least a full day of continuous use.
Fast charging--Fast charging is supported for lithium batteries, but we do not recommend fast charging for lead-acid batteries.

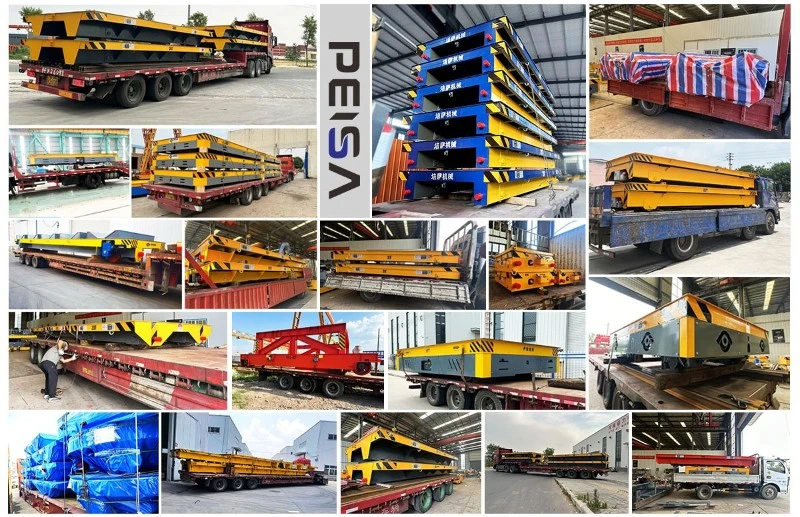

Delivery time--The delivery cycle ranges from 20 to 35 days.
Warranty period-The warranty period is 12 months from the date of the bill of lading.
Provide all spare parts of cart.
