The Mold Transfer Cart is a highly practical model in the DWP series. Compared with standard transfer platforms in the same series, its key feature is the dual-hydraulic four-wheel steering system. It provides stronger driving power, excellent operational stability, and a significantly smaller turning radius.
The cart can easily perform U-turns and move flexibly in narrow working areas without requiring additional clearance space. The steering angle can be customized up to 45 degrees.
Comparison of Advantages and Limitations of the Dual-Axle Mold Transfer Cart
The dual-axle mold transfer cart adopts a dual-motor, dual-drive system, providing strong power output and high operational stability. It supports continuous operation and can handle slight inclines. However, it is not recommended for applications exceeding 100 tons of rated load.
The system offers flexible steering with a small turning radius, allowing operation without dependence on fixed travel routes. However, under heavy-load conditions, wheel wear may increase over time.
The dual-axle steering design ensures stable maneuverability. The rated load range is 1 to 150 tons, making it suitable for heavy-duty handling of molds, steel coils, castings, and similar materials. However, during extended continuous operation, the dual motors may generate heat, so proper cooling and heat dissipation measures are recommended in the design.
DWP type parameters:
| Model | DWP | |||||||
| Rated load (T) | 5 | 10 | 20 | 30 | 50 | 60 | 150 | |
| Impacted rated load(T) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | |

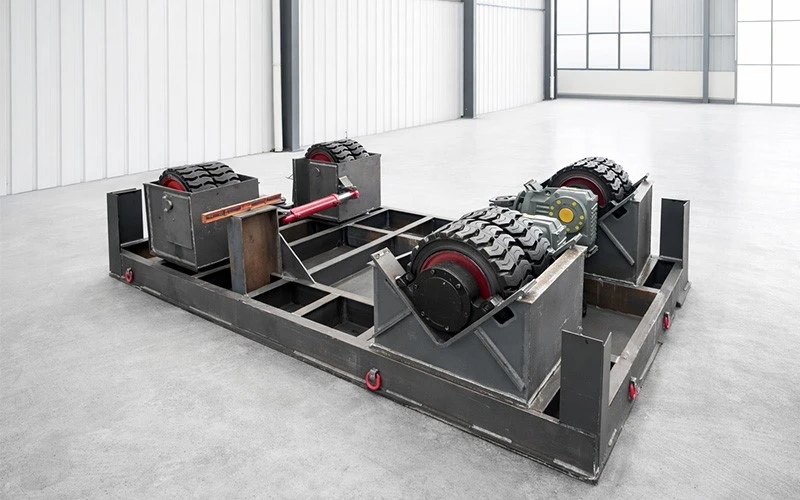

| Structure of frame | Steel plates welded,beam structure | |||||||
| Table Size (mm) | Customized | |||||||
| Height (mm) | 450 | 530 | 600 | 600 | 600 | 700 | 700 | |
| Motor Power (Kw) | 3 | 4 | 5 | 9 | 12 | 15 | 40 | |
| Wheel Diameter(mm) | Φ300 | Φ350 | Φ400 | Φ400 | Φ600 | Φ700 | Φ900 | |
| Running speed(m/min) | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | |
| Break method | electromagnetic brake | |||||||
| Ground clearance | 50-100 | |||||||
| Balance adjustment | mechanical conditioning | |||||||
| Operating Mode | Wireless remote control/car handle | |||||||
| Battery Type | Lead-acid battery, maintenance-free battery, lithium battery | |||||||
| Safety protection | Infrared contact stop, fan-scanning radar | |||||||
| Surface requirement | Laying rubber, V-shaped frame, table lifting, rollover, work frame | |||||||
CASE:
This cart offers impressive load capacity, with customizable tonnage ranging from 1 ton to 200 tons. Customers only need to provide the maximum weight of their goods, and we will tailor the rated load capacity accordingly, avoiding both insufficient load capacity and unnecessary power redundancy.
Wheel configuration, motor power, and battery capacity are all matched based on different load requirements. For example, a 100-ton trackless transfer cart we recently manufactured was equipped with six wheels. Each unit is uniquely configured according to its specific application scenario.
We once customized a 30-ton dual-axle Mold Transfer Cart for an Italian client. The overall dimensions were specified by the customer as 4000 × 2000 mm, and the equipment was shipped to the Port of Genoa, Italy. It has been successfully used on-site for handling 30-ton heavy molds.
Below are the detailed parameters of this 30-ton model: overall size 4000 × 2000 × 900 mm. We support full customization with length ranging from 1 meter to 12 meters. The standard self-weight is around 4 tons, while we increased it to 6 tons according to the client's special requirements.
It also offers excellent obstacle-crossing capability. The four-wheel steering system enables stable movement over small slopes and uneven surfaces. Suitable for both indoor workshop mold handling and outdoor material transport, it is a highly versatile and practical solution for industrial applications.
Henan Peisa Machinery Co., Ltd. is a professional manufacturer specializing in the customized design and production of transfer carts. With years of industry experience, we have served nearly 3,000 industrial enterprises, providing tailored material handling solutions to thousands of customers.
Our customer repurchase rate reaches 60%. In addition, we maintain a strong referral rate-nearly 40% of our new customers come from recommendations by existing clients. This strong performance is a clear reflection of our technical capability, product quality, and reliable after-sales service.
