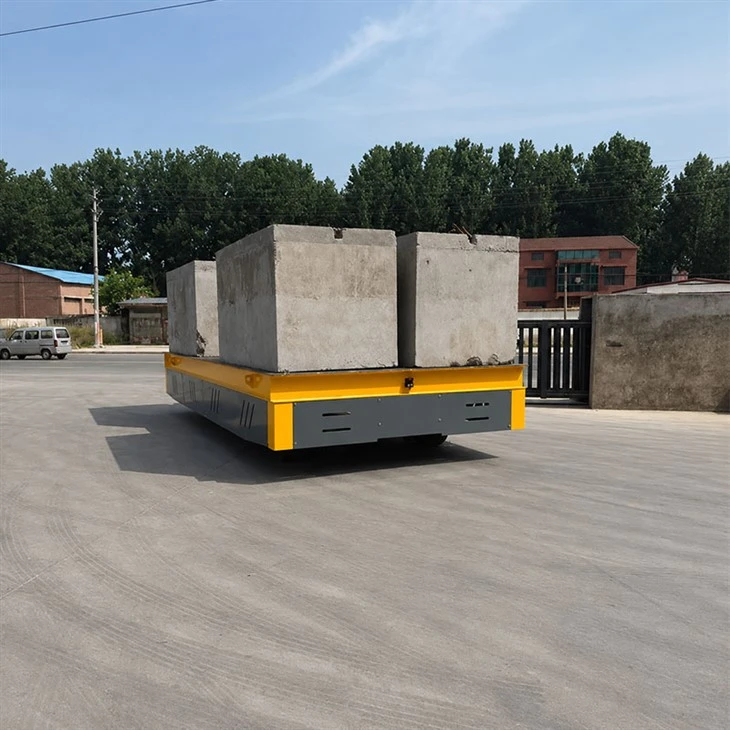

This 360 degree transfer cart is part of the DWP series. Its biggest advantage is its ultra-tight turning radius enabling full 360-degree rotation, making it ideal for factories with narrow passageways.
Working Principle
The 360 degree transfer cart relies on differential steering for directional adjustment. Two powered drive wheels are fitted with independent drive motors, and the other two wheels are unpowered swivel casters. Steering is realized by varying the rotating speeds of the two drive wheels. Since the swivel casters can spin freely in all directions, the whole cart can complete a full 360-degree turn smoothly.
Boasting a straightforward mechanical structure, the cart suffers very few breakdowns. Routine maintenance only covers the motors and battery pack. The cart's service life generally exceeds 10 years, while the battery lasts around 3 years, subject to daily operating habits and usage frequency.
| Model | DWP | |||||||
| Rated load (T) | 5 | 10 | 20 | 30 | 50 | 60 | 150 | |
| Impacted rated load(T) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | |
| Structure of frame | Steel plates welded,beam structure | |||||||
| Table Size (mm) | Customized | |||||||
| Height (mm) | 450 | 530 | 600 | 600 | 600 | 700 | 700 | |
| Motor Power (Kw) | 3 | 4 | 5 | 9 | 12 | 15 | 40 | |
| Wheel Diameter(mm) | Φ300 | Φ350 | Φ400 | Φ400 | Φ600 | Φ700 | Φ900 | |
| Running speed(m/min) | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | |
| Break method | electromagnetic brake | |||||||
| Ground clearance | 50-100 | |||||||
| Balance adjustment | mechanical conditioning | |||||||
| Operating Mode | Wireless remote control/car handle | |||||||
| Battery Type | Lead-acid battery, maintenance-free battery, lithium battery | |||||||
| Safety protection | Infrared contact stop, fan-scanning radar | |||||||
| Surface requirement | Laying rubber, V-shaped frame, table lifting, rollover, work frame | |||||||
Thanks to its tiny turning radius, it maneuvers effortlessly between machine tools, narrow warehouse aisles and compact production line layouts. Plenty of older factories only have aisles 2 to 3 meters wide-spaces too cramped for forklifts to pass through, and rail installation would damage the original floor surface. This 360 degree transfer cart runs straight on existing concrete floors with no civil construction required. It can be put into service right after delivery, and travel paths can be rearranged flexibly whenever needed.
