PEISA Machinery DWP Series Electric Trackless Transfer Cart

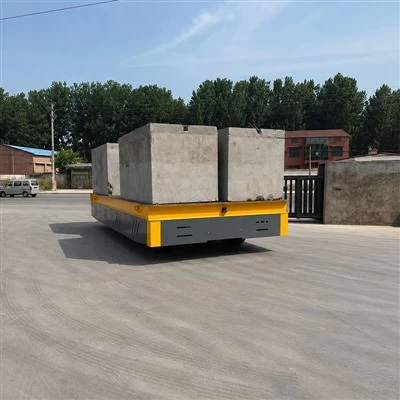

PEISA Machinery's DWP electric transfer carts adopt a tire-mounted wheel structure. Unlike rail-bound transport equipment, they travel unconstrained across all areas of a factory floor with full mobility.
Working Mechanism
A large-capacity lead-acid or lithium battery fitted inside the chassis supplies power. The drive motor then powers the wheels to move forward, reverse and steer. Select upgraded models also deliver advanced handling including 360-degree in-place spinning and side translational movement.
Many clients ask two common questions: How much does one of these electric transfer carts cost? Does it come with a higher price tag than a standard forklift?
Final pricing is determined by overall size, rated load weight and custom component setups. Identical frame sizes carry different prices for varying tonnages, and all tailor-built units receive separate quotations.
Recent real order prices for your reference:
DWP-5T: $5,000
DWP-10T: $7,500
DWP-12T: $7,600
DWP-50T: $7,500
| Model | DWP | |||||||
| Rated load (T) | 5 | 10 | 20 | 30 | 50 | 60 | 150 | |
| Impacted rated load(T) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | |
| Structure of frame | Steel plates welded,beam structure | |||||||
| Table Size (mm) | Customized | |||||||
| Height (mm) | 450 | 530 | 600 | 600 | 600 | 700 | 700 | |
| Motor Power (Kw) | 3 | 4 | 5 | 9 | 12 | 15 | 40 | |
| Wheel Diameter(mm) | Φ300 | Φ350 | Φ400 | Φ400 | Φ600 | Φ700 | Φ900 | |
| Running speed(m/min) | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | |
| Break method | electromagnetic brake | |||||||
| Ground clearance | 50-100 | |||||||
| Balance adjustment | mechanical conditioning | |||||||
| Operating Mode | Wireless remote control/car handle | |||||||
| Battery Type | Lead-acid battery, maintenance-free battery, lithium battery | |||||||
| Safety protection | Infrared contact stop, fan-scanning radar | |||||||
| Surface requirement | Laying rubber, V-shaped frame, table lifting, rollover, work frame | |||||||
Core Assembly Breakdown
The cart boasts a simple, robust build that keeps routine upkeep quick and hassle-free.
Main Frame: Heavy-duty welded Q235B steel engineered for superior load resistance and structural stability.
Motor & Reducer: Supplied by trusted local manufacturers to guarantee steady, dependable performance.
Power Battery: Standard capacities span 100Ah to 800Ah; 1000Ah units can be custom ordered. Every battery pack is sized to sustain a full shift of continuous operation.
Drive Wheels: Two durable material choices – polyurethane clad or solid rubber – matched to your workshop floor condition.
Control Unit: Centralized electrical cabinet paired with handheld wireless remote for full operational control.
Henan PEISA Machinery Co., Ltd. has been active in the material handling industry for over a decade. Backed by a passionate and professional team, we offer enthusiastic service, expert technical specifications, and competitive prices.
