A steel structure manufacturing plant ordered this DWP TYPE 20 T electric flat cart to transport heavy steel structures from the production area to the semi-finished goods area. The cart runs along a 300-meter track, making about 20 round trips each day. Before, the customer used forklifts to move these 20T steel structures,a method that often led to material slippage, required multiple workers to assist, and was overall inefficient.
Since this customized flat cart was put into use, its roomy 4m × 2m platform has provided perfect support for the steel structures. The 300Ah battery capacity is more than enough to cover the 300-meter track route, and now a single operator can finish the entire transfer process with a remote control, no extra personnel needed.
In actual operation, the cart maintains a steady speed of 30 meters per minute, ensuring the transported materials stay stable. There have been no cases of material slippage or collision, boosting transfer efficiency by over 60%.
Client Feedback:
"This rail transfer cart has completely solved our problems with moving 20-ton steel structures. It saves labor and is safe-an essential piece of equipment for upgrading our workshop logistics."

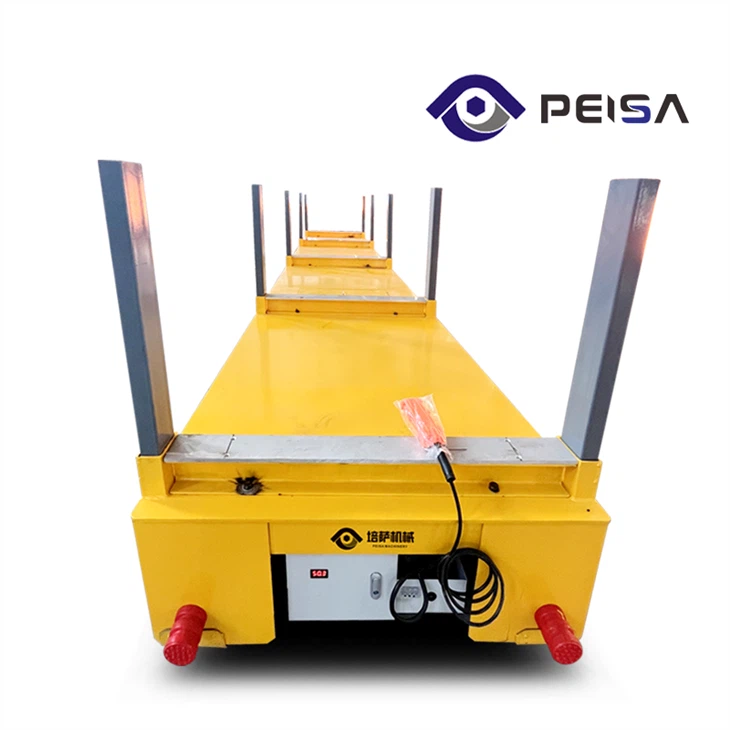

Electric Flat Cart Product Information
Customized heavy-duty build + quenched cast steel wheels.
Load Capacity: Rated 20 tons, able to handle the heaviest materials in the workshop.
Dimensions: Large 4m × 2m platform, sized to perfectly match the steel structural components.
Power System: Equipped with a high-capacity 300Ah battery pack, supporting a continuous operating range of 5 kilometers.
Mobility Structure: Rail-guided design, compatible with the 300-meter track layout, maintaining a stable operating speed of 30m/min.
Safety & Control: Battery-powered, no trailing cables to restrict movement. A single operator can control the entire process via remote control.
1. Designed for maximum load capacity, ensuring the rail transfer cart won't deform under heavy loads.
2. The 300Ah battery provides enough power to support 20 transport cycles.
3. The large platform design keeps materials stable, eliminating worries about tilting or falling off.
4. The rail guidance system prevents the cart from going off track, reducing the need for constant supervision while ensuring operational safety.
this electric flat cart provides heavy steel structure enterprises with a safe, efficient, and cost-effective solution for heavy material transfer.
