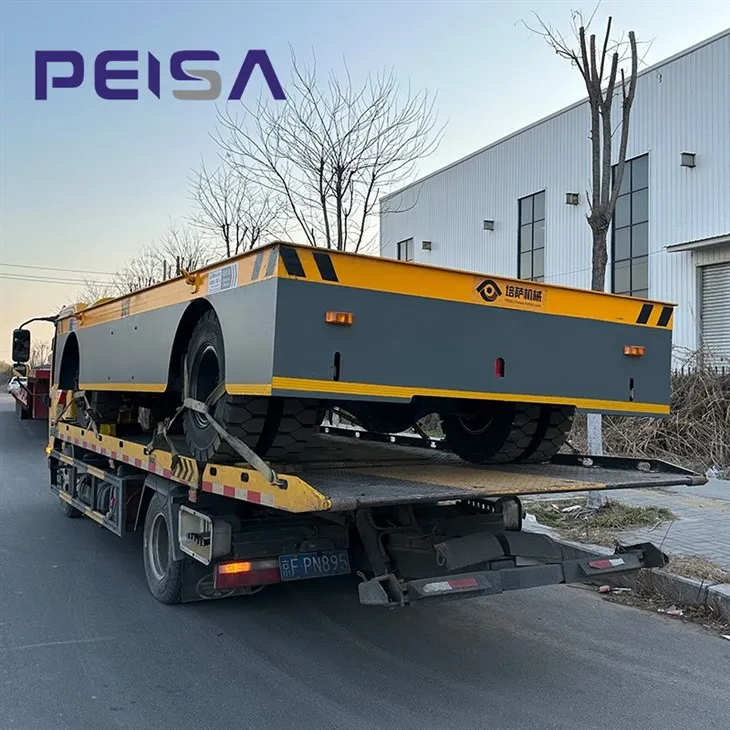

Die Transport Cart

Model: DWP
Rated Load Capacity: 10 Tons (customizable: 1–150 tons)
Platform Size: 4000 × 2000 × 700 mm (customizable)
Frame Structure: Welded frame made of Q235B high-strength carbon steel plates
Power Supply: Battery powered
Travel Speed: 25 m/min
Steering System: Hydraulic steering (dual-drive / four-wheel drive optional)
Travel Functions: Forward, reverse, left turn, right turn
Battery Endurance: 4–6 hours continuous operation
Turning Radius: Depends on cart dimensions and steering configuration

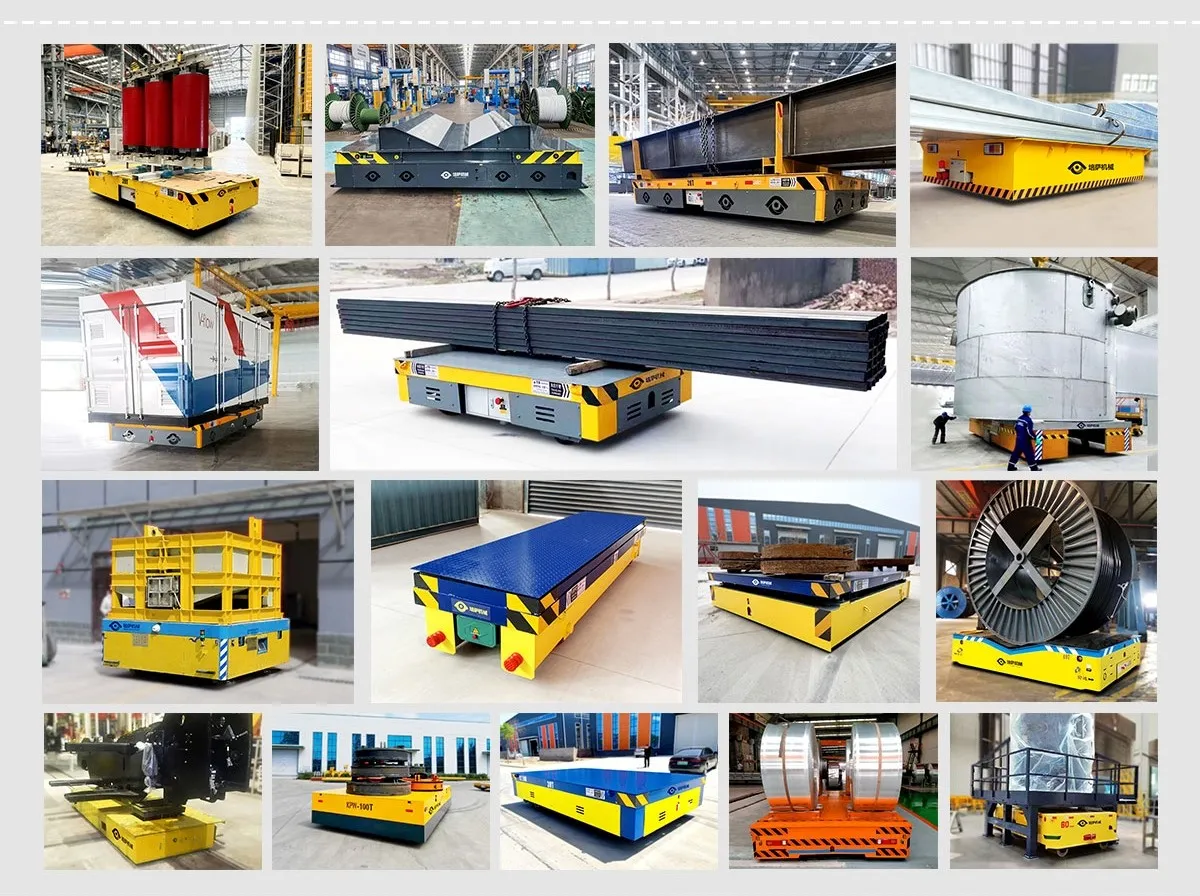

PEISA Machinery offers a wide range of die transport carts, including heavy-duty die transport carts, battery-powered die transport carts, trackless die transport carts, and rail-guided die transport carts. We are committed to delivering high-quality products and excellent services at competitive prices.

Description

Technical Parameters

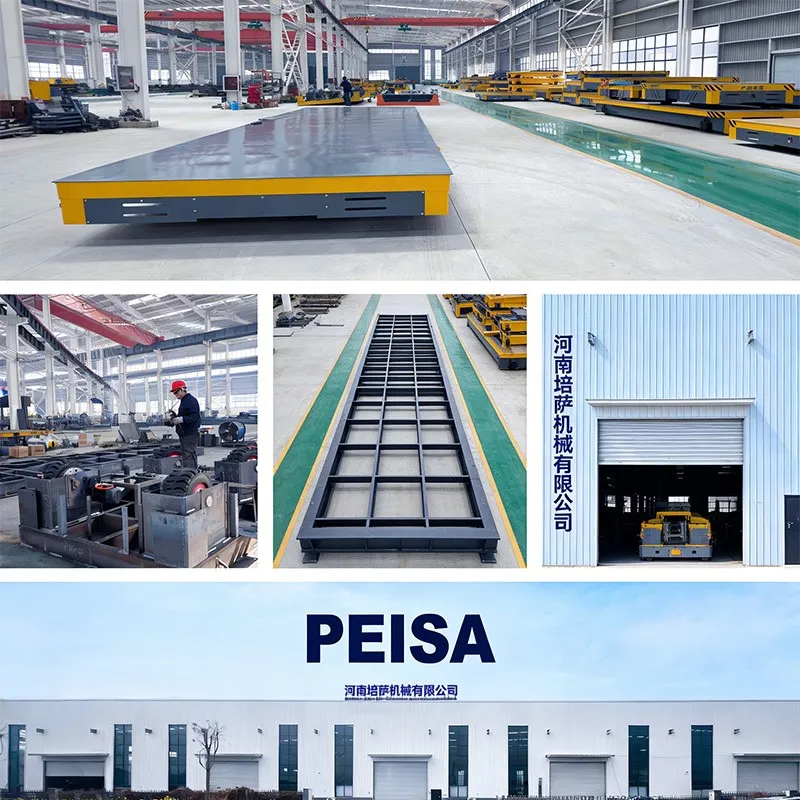

PEISA Machinery is a dedicated expert in the die transport cart industry. With many years of experience and a highly qualified professional team, our technical engineers-graduates in mechanical design-bring extensive expertise in the development and design of transfer carts.

Parts

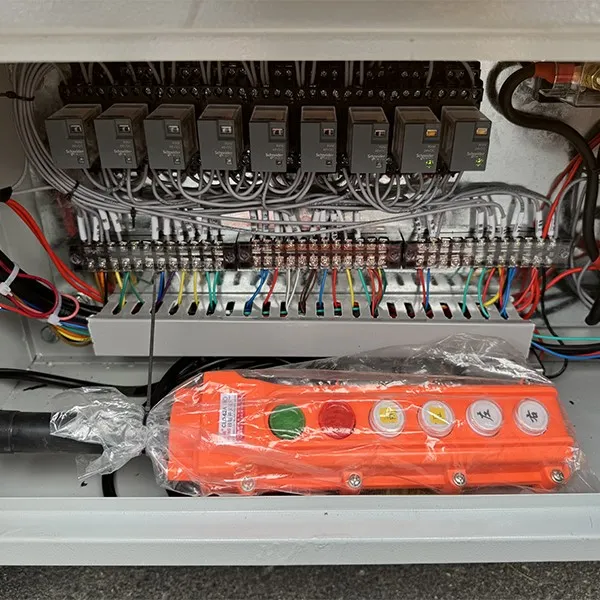

electrical box

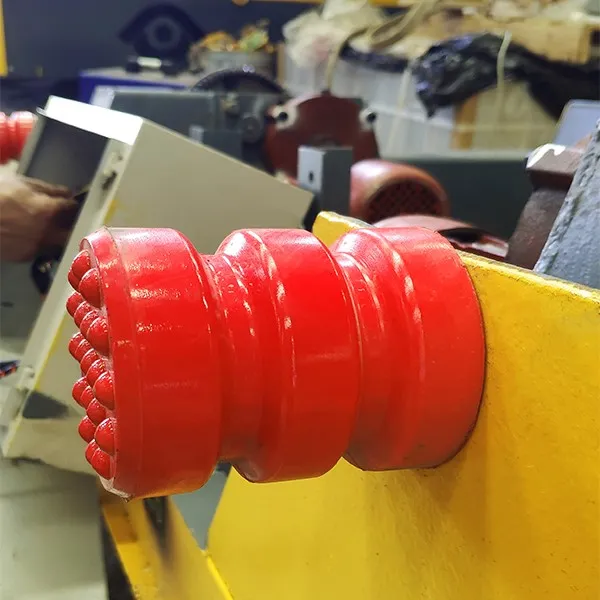

Bollards

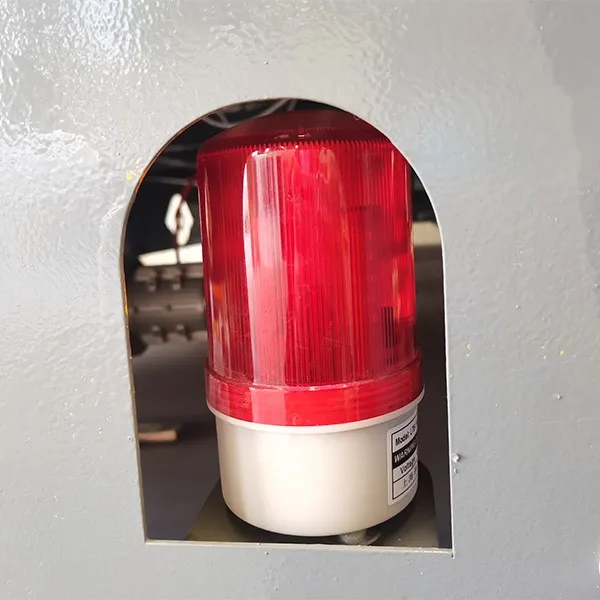

Alarm lights

High operating speeds

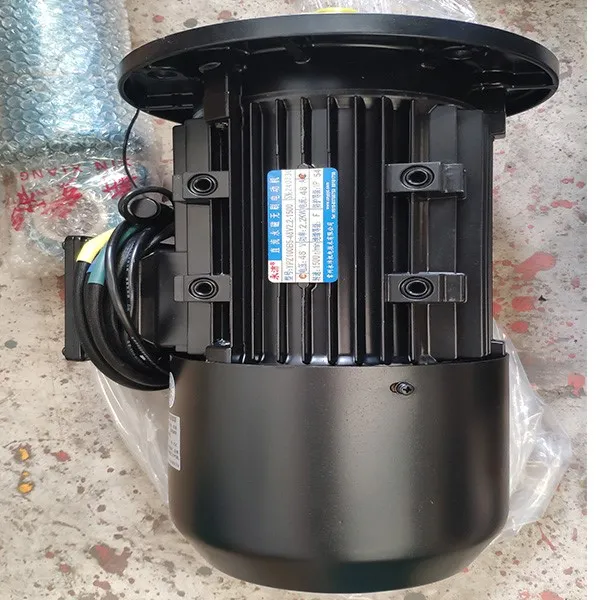

Motor

First step in smart logistics

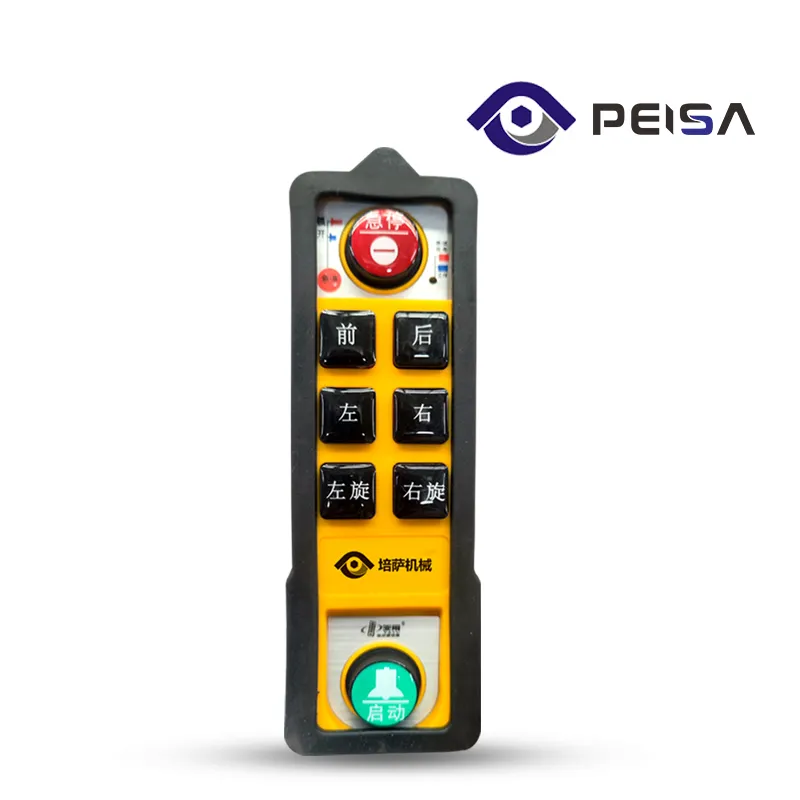

Remote Control

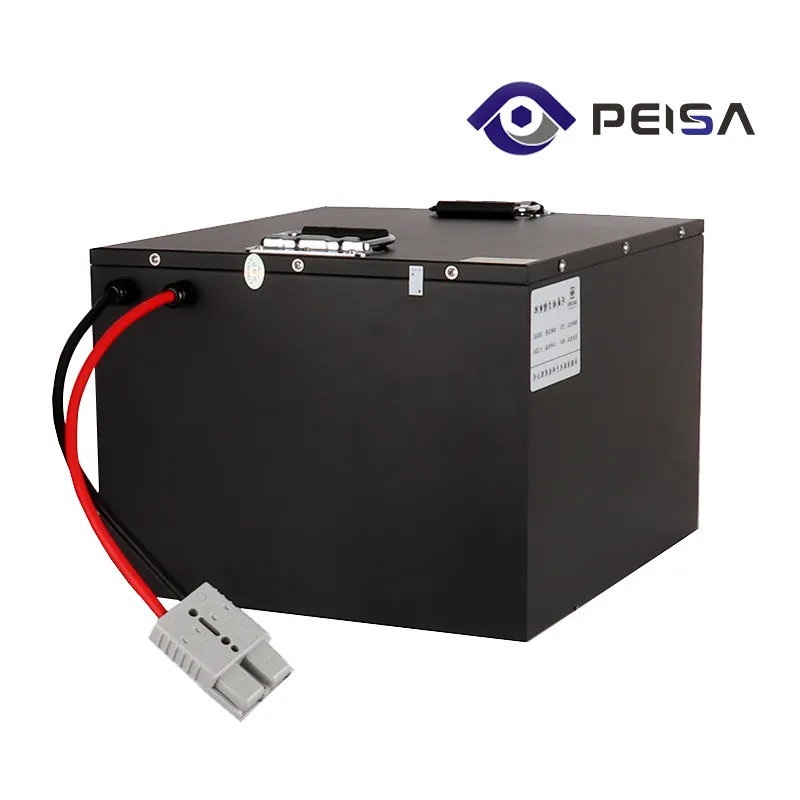

lithium battery

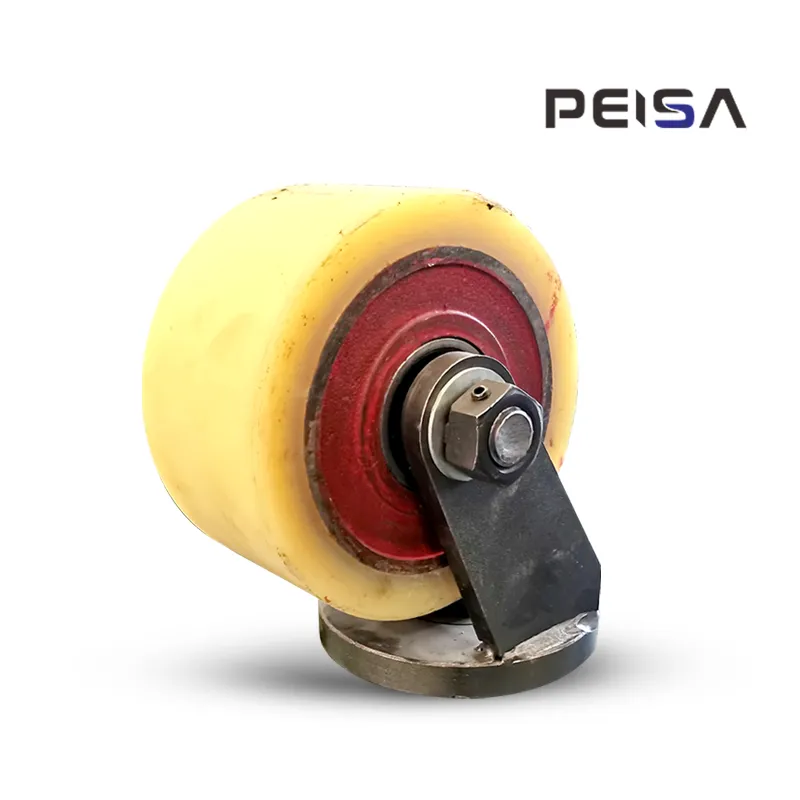

rubber wheels

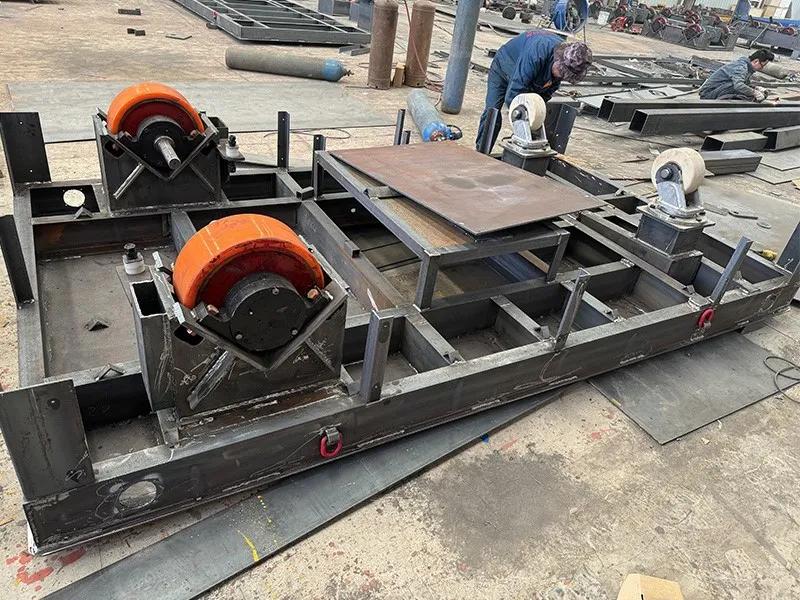

Cart Frame

Why do customers prefer wheeled mold transport vehicles for material handling?

High Flexibility: Trackless transport vehicles offer excellent maneuverability. Their 360-degree turning capability allows flexible movement even in narrow areas, and their wheeled design is ideal for transporting materials between multiple workstations.

Durability: We use high-quality Q235B steel plates and advanced manufacturing processes (welding and assembly) to ensure a service life of more than 15 years.

Long Battery Life: We equip the vehicle with high-capacity lead-acid batteries. The battery capacity can be selected according to customer requirements, ensuring continuous operation for at least 4–6 hours.

Reliable Components: For the motor, reducer, and electronic control system, we cooperate with well-known and reliable component suppliers to ensure product stability and easy maintenance. Examples include Siemens and Schneider Electric.

Competitive Pricing: As a direct manufacturer, we eliminate intermediaries and offer factory-direct pricing to ensure your investment is worthwhile.

Model	DWP
Rated load (T)	5	10	20	30	50	60	150
Impacted rated load(T)	7.5	15	22.5	30	45	60	75
Structure of frame	Steel plates welded,beam structure
Table Size (mm)	Customized
Height (mm)	450	530	600	600	600	700	700
Motor Power (Kw)	3	4	5	9	12	15	40
Wheel Diameter(mm)	Φ300	Φ350	Φ400	Φ400	Φ600	Φ700	Φ900
Running speed(m/min)	0-25	0-25	0-25	0-25	0-25	0-25	0-25
Break method	electromagnetic brake
Ground clearance	50-100
Balance adjustment	mechanical conditioning
Operating Mode	Wireless remote control/car handle
Battery Type	Lead-acid battery, maintenance-free battery, lithium battery
Safety protection	Infrared contact stop, fan-scanning radar
Surface requirement	Laying rubber, V-shaped frame, table lifting, rollover, work frame
