Rail Transfer Vehicle

The DPJ series consists of equipment designed to provide power support to transfer carts via cables, cable reels, cable chains, or similar mechanisms. Primarily utilized in Rail Transfer Vehicle systems, it draws AC power from the facility's mains supply and channels it into the cart's internal circuitry. Once powered, the cart's drive wheels engage, enabling it to execute functions such as forward and backward movement, stopping, and lifting.

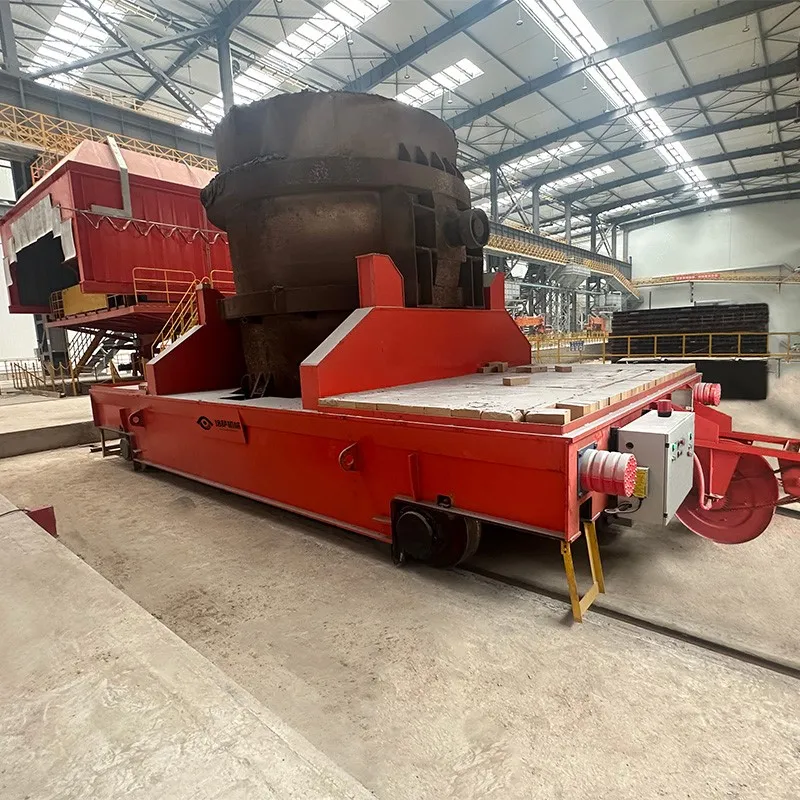

This rail transfer cart has a rated load capacity of up to 150 tons, perfectly matching the weight of the customer's ladles containing high-temperature molten materials. We specifically optimized the power supply system and protection design, effectively solving transportation challenges in high-temperature environments. The equipment has now been successfully delivered and is already in operation.

Unlike ordinary transfer carts, this rail transfer vehicle can operate stably in high-temperature and dusty working environments. Its core advantages include strong load capacity, effective protection, and a stable power supply, fully matching the customer's actual operating conditions.


The customer is a company in Yunnan engaged in the processing of high-temperature molten materials. In daily production, they frequently need to transport ladles weighing approximately 150 tons, containing molten materials at high temperatures. The working environment is hot and dusty, placing extremely high demands on the transfer equipment.

Previously, the customer tried other mobile equipment, but these solutions either lacked sufficient load capacity to carry heavy ladles or lacked targeted protection, resulting in frequent dust and water ingress into electrical boxes. This led to repeated equipment failures and downtime, seriously delaying production.

In addition, ordinary battery powered rail transfer vehicles require frequent charging, which cannot meet continuous transportation demands. Batch transfers are not only inefficient but also increase safety risks. The customer urgently needed a customized solution to address these issues.

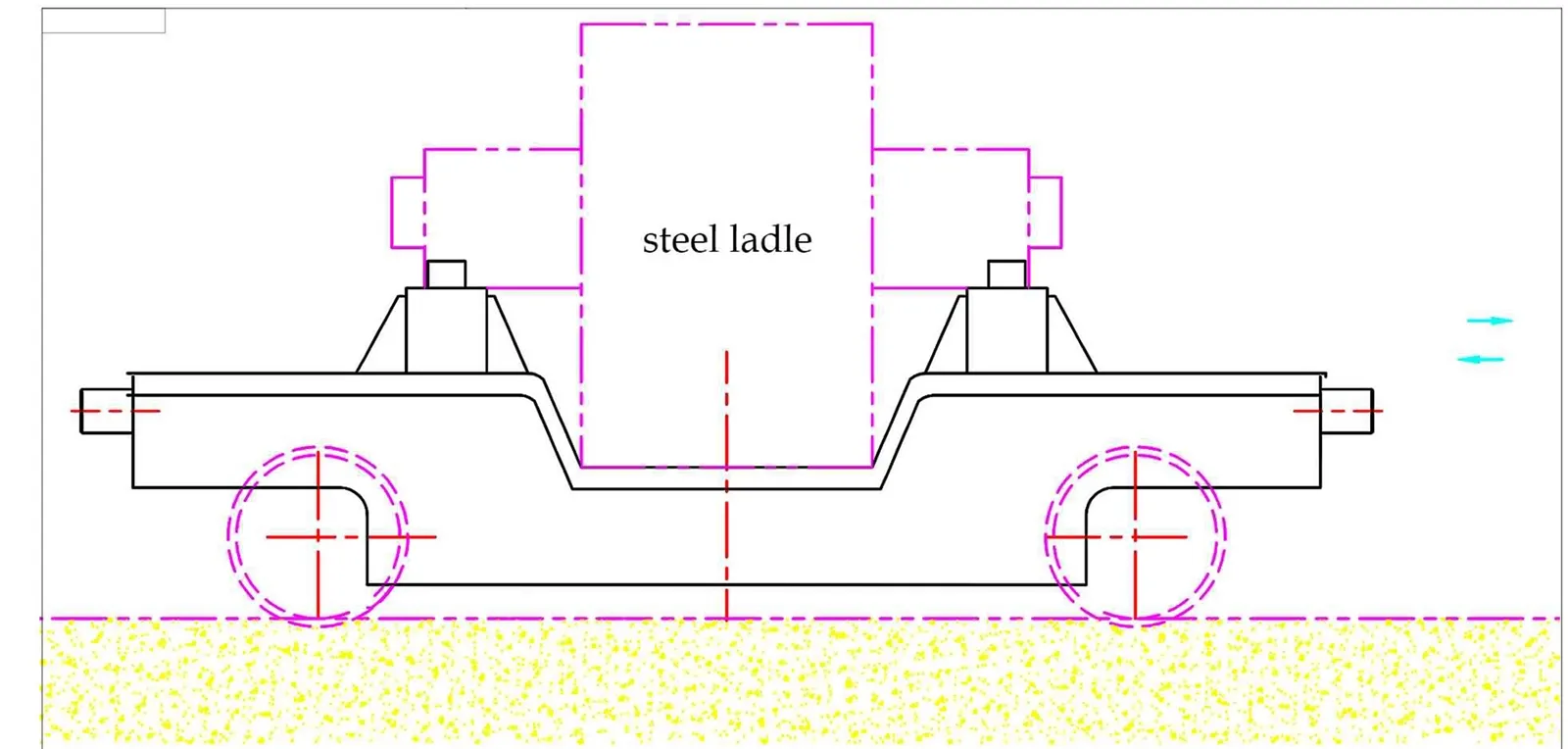

After fully understanding the customer's core needs and pain points, we customized this 150-ton Rail Transfer Vehicle. A ladle-specific support bracket was designed according to the ladle dimensions, providing stable support while offering excellent high-temperature resistance.

We adopted a cable reel power supply to ensure continuous operation, implemented IP54 full-body protection (including the electrical box) to resist high temperatures, dust, and splashing water, and reinforced the vehicle structure using high-temperature-resistant materials to ensure stable operation under a 150-ton load in extreme environments.

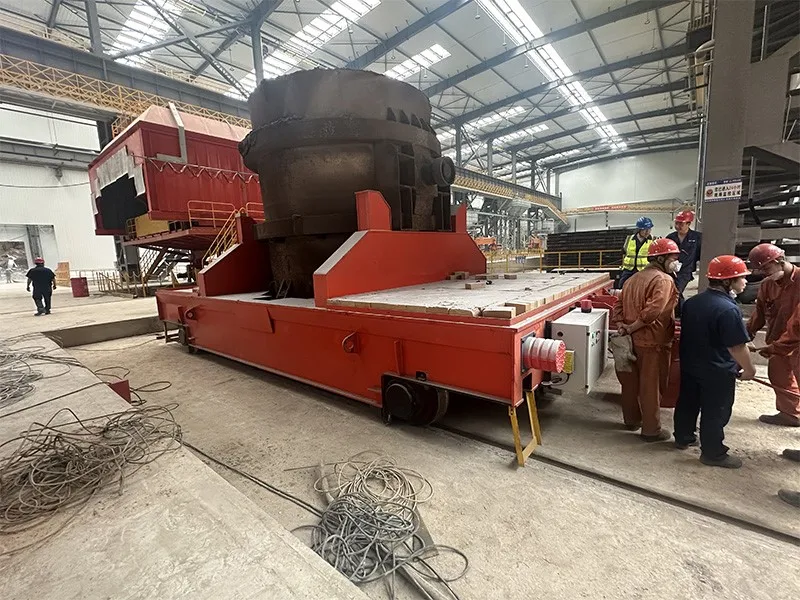

After delivery, the equipment was quickly put into use in the customer's workshop and has been operating stably for several months. The customer is highly satisfied: the rail car runs smoothly, the power supply is stable, and there have been no equipment failures or unplanned downtime, significantly improving transfer efficiency.

Moreover, the IP54 protection has proven highly effective, preventing dust ingress and electrical component damage, greatly reducing maintenance costs. The equipment not only solved the original transportation challenges but also helped reduce operating expenses, earning high praise for its practicality and stability.

Advantage 1: Powerful load capacity, suitable for high-temperature molten materials
Ordinary rail transfer  trolley typically have a rated load capacity of less than 50 tons, making them unsuitable for transporting 150-ton steel ladles. This rail transfer trolley, with its 150-ton load capacity, precisely meets the customer's core requirements.

Its reinforced, high-temperature-resistant structure enables stable transportation of steel ladles and molten materials, preventing spillage and equipment damage caused by insufficient load capacity or poor heat resistance. Its safety performance far exceeds that of ordinary rail transfer cartsc.

Advantage 2: Cable reel power supply for stable, uninterrupted operation
Compared with battery-powered rail transfer carts, the cable reel power supply eliminates the need for charging or battery replacement, enabling 24-hour continuous operation and completely solving downtime caused by charging interruptions.

The power supply is stable and reliable, meeting the high-intensity, continuous transportation demands of high-temperature workshops and significantly improving overall efficiency.

Advantage 3: IP54 full protection with an extremely low failure rate
Ordinary rail flat carts lack targeted protection and are prone to dust and water ingress in high-temperature, dusty environments, leading to frequent failures. This rail flat cart features full IP54 protection.

It effectively blocks high-temperature dust and minor water splashes, protecting electrical components from damage, greatly reducing failure rates, simplifying maintenance, and delivering far superior stability compared to standard rail transfer vehicles.
