Products Description

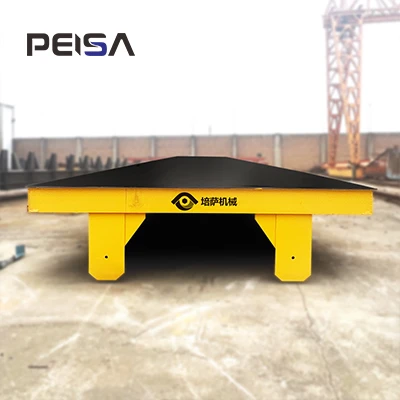

The rail-powered transfer cart is a high-efficiency material handling equipment designed by Peisa Machinery for industrial workshops and production lines. Using a rail power supply system, the vehicle can achieve continuous and stable heavy-duty transportation on fixed tracks, eliminating the hassle of frequent charging or cable connections.
1.High Load Capacity: The single cart load capacity ranges from 1 to 1000 tons, meeting the handling needs of various materials such as heavy steel, mechanical equipment, steel coils, and ladles.
2.Stable and Reliable: Uses high-quality cast steel wheels and a Q235 steel body, combined with an advanced electrical control system, to ensure smooth operation and precise positioning.
3.Simple Operation: Can be equipped with an on-board handle or wireless remote control, allowing operators to quickly start operation without professional training.
4.Flexible Customization: Dimensions, load capacity, track center distance, and electrical system can all be customized according to customer requirements.
Project Cases & Customer Feedback
case 1
16-ton Workshop Transfer Cart for Transporting Large Mechanical Equipment
Project Requirements: The workshop needed to transport mechanical equipment weighing up to 16 tons to the assembly area.
Solution: Customized a 16-ton rail-powered transfer cart with a wide-body design to match the track center distance, ensuring safe handling of the equipment.
Customer Feedback: "The vehicle runs smoothly and is easy to operate, greatly reducing the risk of manual handling."
case 2
High-Temperature Resistant Transfer Cart for Transporting Steel Ladles
Project Requirements: In a high-temperature environment, steel ladles needed to be transported to the cooling area.
Solution: Equipped with high-temperature resistant tires and an overall heat-insulated design, including explosion-proof components and pipes, and a two-rail power supply to ensure continuous and safe transportation.
Customer Feedback: "It can still operate normally in high-temperature environments, greatly improving production efficiency."
Application Areas
Steel Industry: Handling heavy materials such as steel coils, steel plates, and ladles.
Machinery Manufacturing: Workshop handling of large machinery, molds, and workpieces.
Casting and High-Temperature Processes: Transportation of high-temperature resistant materials and heavy castings.
Production Line Logistics: Internal material transportation on factory production lines, improving production efficiency.
Technical Parameter
|
Model |
DPX |
|||||||||
|
Load (T) |
1-5 |
5-10 |
10-20 |
20-30 |
30-40 |
40-50 |
50-60 |
60-80 |
80-100 |
100-200 |
|
Maximum Impact Load (T) |
6 |
12 |
24 |
35 |
50 |
64 |
72 |
100 |
120 |
120-250 |
|
Overall Dimensions (mm) |
4000*2000 |
5000*2500 |
6000*3000 |
|||||||
|
Vehicle Height (mm) |
500 |
500 |
550 |
600 |
700 |
800 |
800 |
900 |
900 |
1000 |
|
Wheel Size (mm) |
300 |
300 |
350 |
350 |
400 |
500 |
500 |
500 |
600 |
800 |
|
Wheel-pressure (kn) |
26 |
45 |
65 |
110 |
140 |
180 |
200 |
230 |
350 |
560 |
|
Power (KM) |
1.5 |
2 |
2 |
3 |
4 |
5.5 |
6 |
8 |
10 |
22 |
|
Track Selection |
P18 |
P24 |
P38/43 |
P50 |
QU100 |
|||||
|
Track Gauge (mm) |
1430 |
2000 |
||||||||
|
Battery Capacity (Ah) |
180 |
200 |
260-300 |
300 |
400 |
500 |
600 |
|||
|
Voltage (V) |
48 |
48 |
48 |
48 |
48 |
48 |
72 |
|||
|
Braking Method |
Brake |
|||||||||
|
Running Speed (m/min) |
5-30 |
|||||||||
|
Running Time (h) |
4-5 |
|||||||||
|
Charging Time (h) |
6-8 |
|||||||||
|
Operating Mode |
Wireless Remote Control + onboard Handle |
|||||||||
|
Type |
Lead Acid Battery/maintenance Free Battery/lithium Battery (optional) |
|||||||||
|
Safety Protection |
Infrared Contact Stop/fan-shaped Scanning Radar (optional) |
|||||||||
|
Table Top Requirements |
Add laying rubber/add V-shaped frame/table lifting side flipping/add fixture rack (non-standard customization) |
|||||||||
About Peisa Machinery
Henan Peisa Machinery Co., Ltd. is a professional enterprise specializing in the research and manufacturing of rail and trackless material transfer carts, with over 12 years of industry experience. We adhere to the philosophy of "safety, efficiency, and customization," providing tailor-made handling solutions for our customers.
